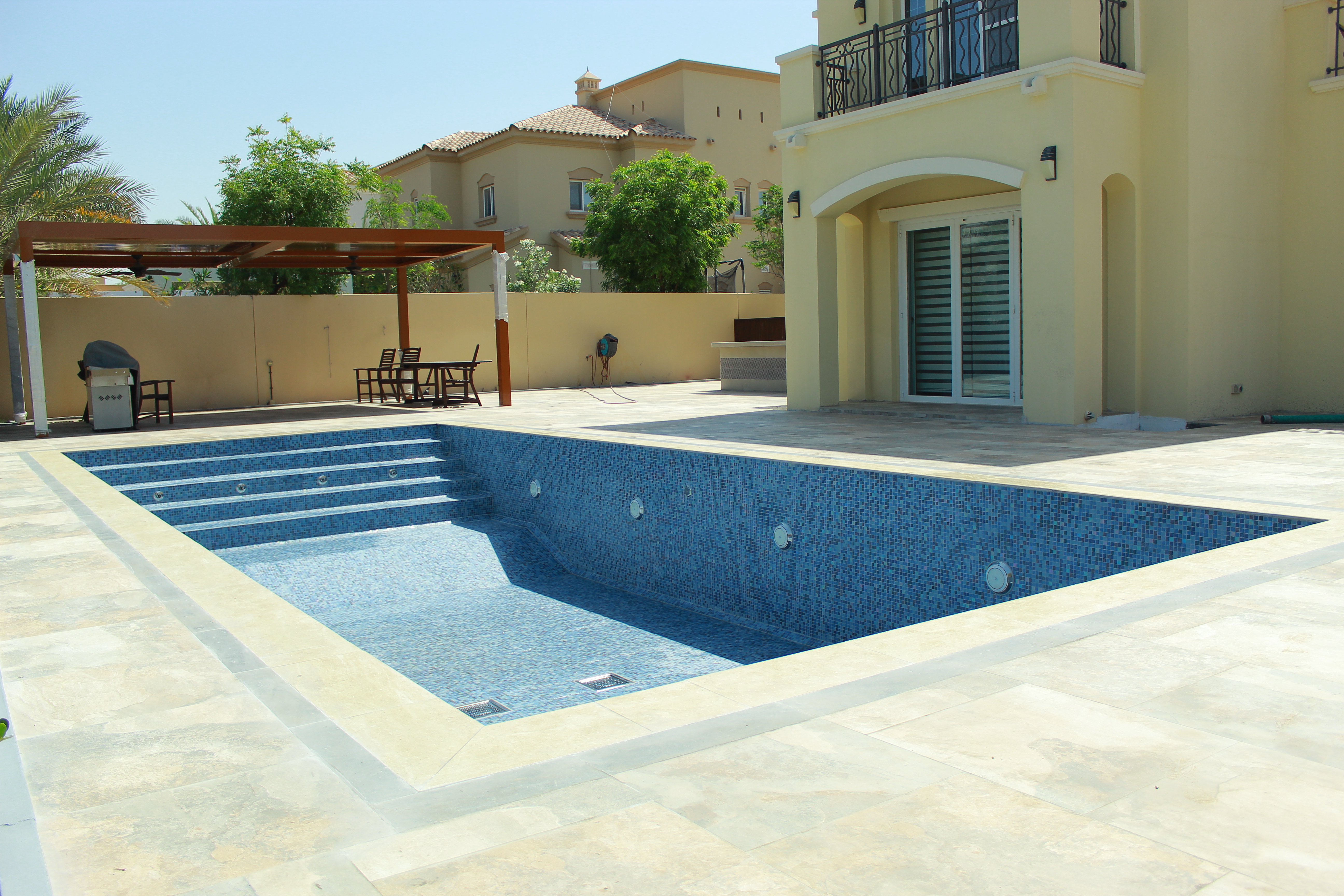

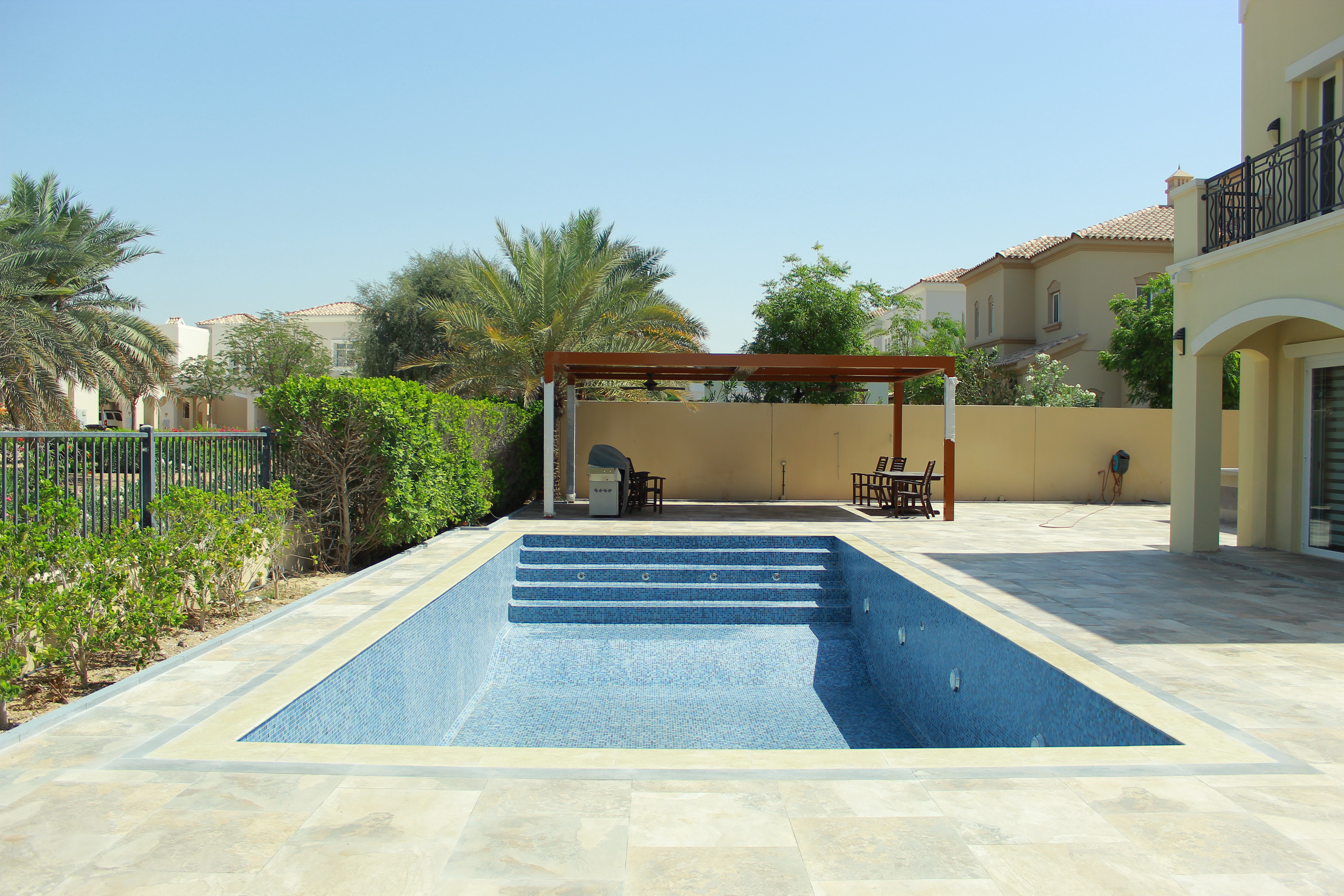

Location:
Arabian Ranches, Dubai
Project Description:
L = 11 m x W = 4.5 m, maximum depth = 1.3 m
Special Features:
Fittings: Stainless Steel 316L

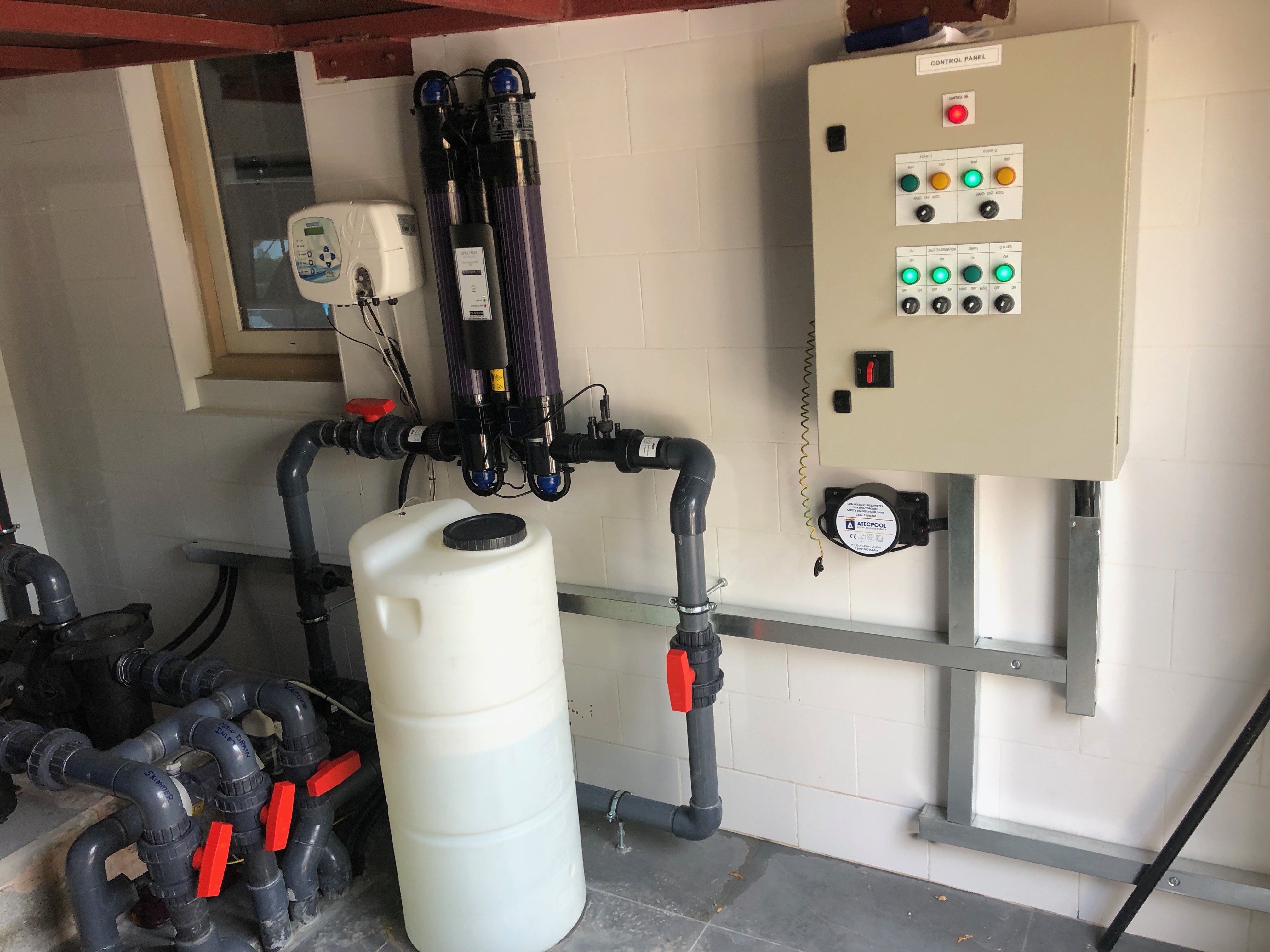

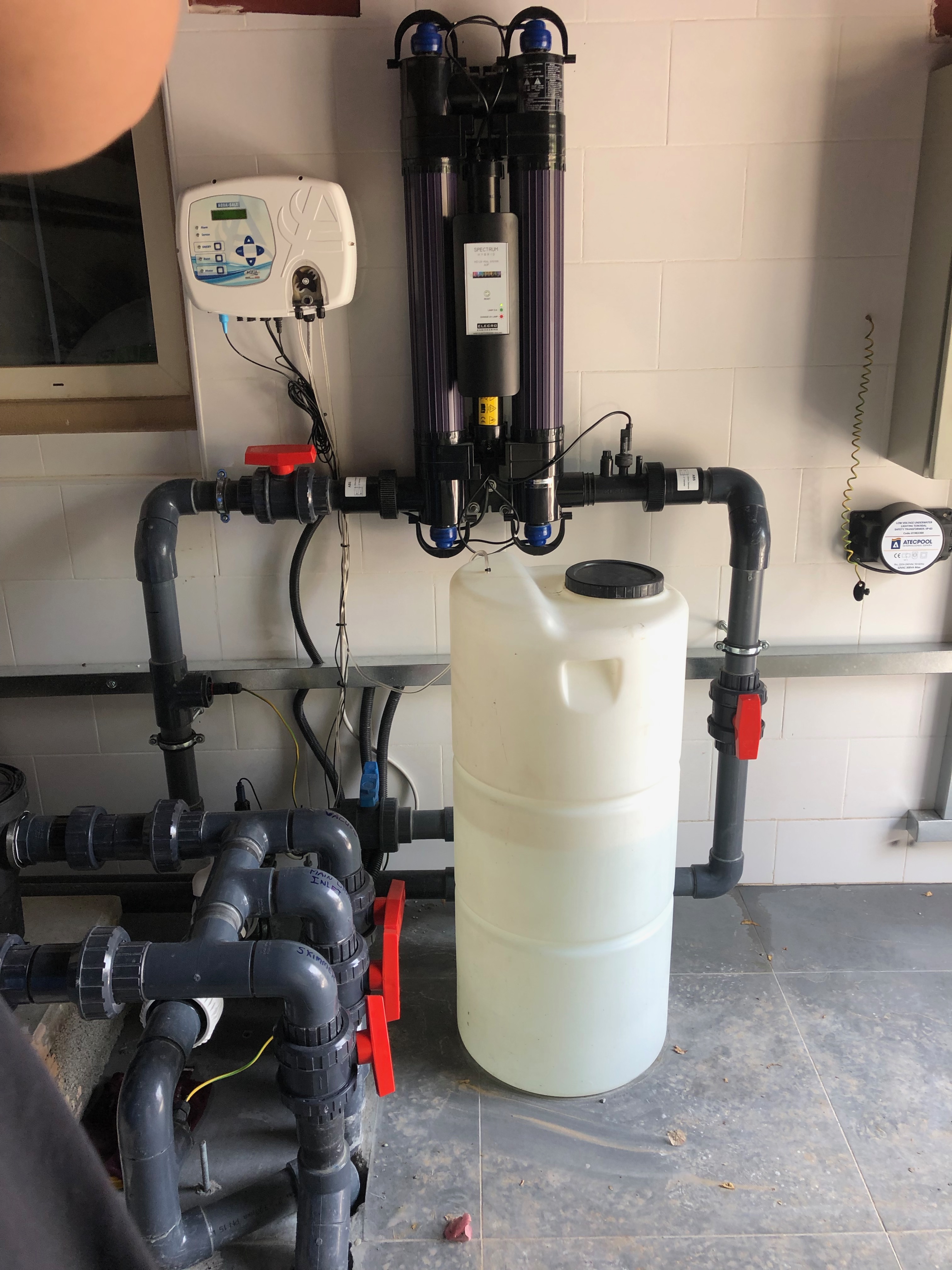

Water Treatment: Salt Chlorinator, pH Automatic Dosing System, UV Disinfection

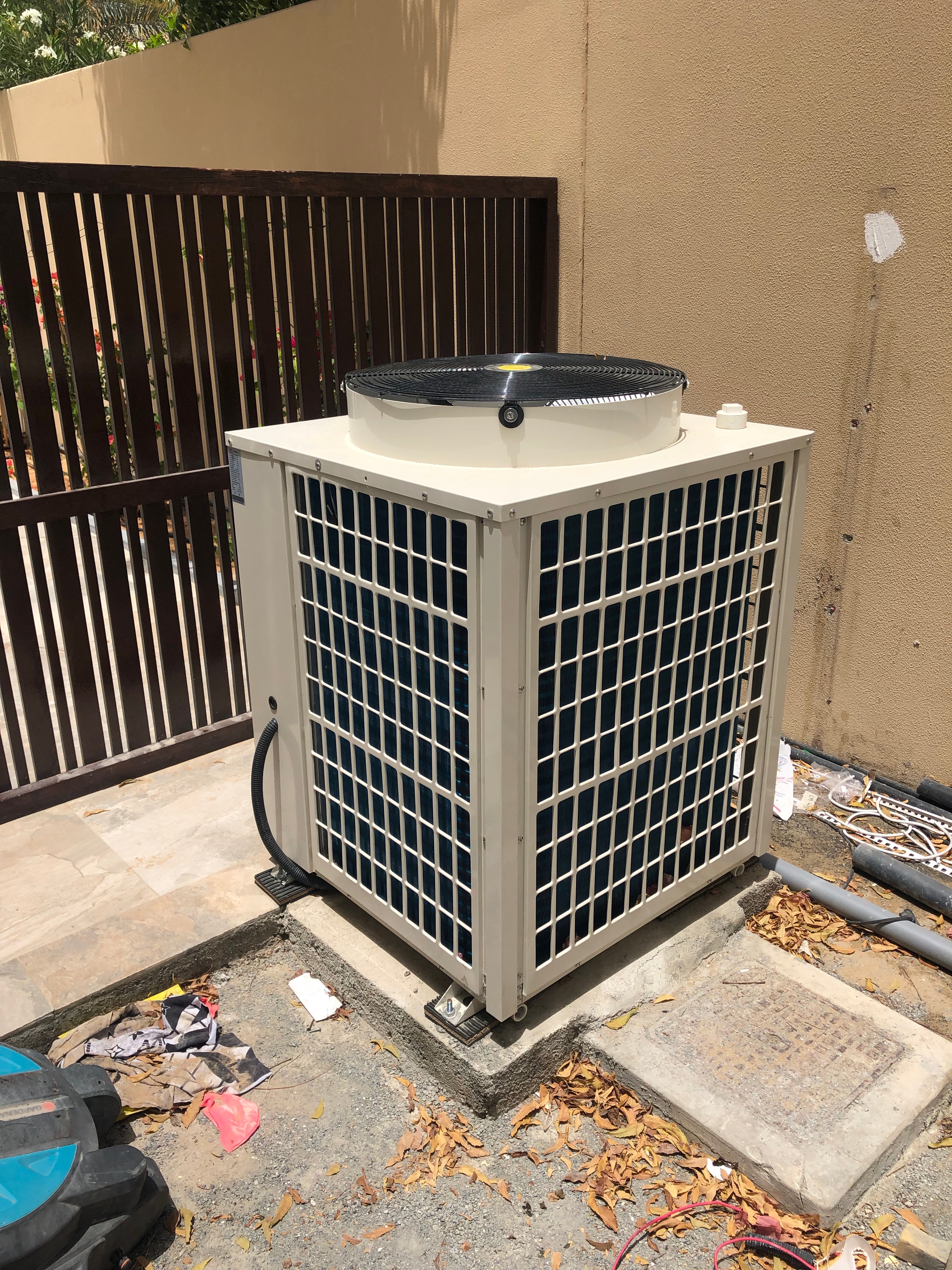

Reversible Heat Cooling Pump

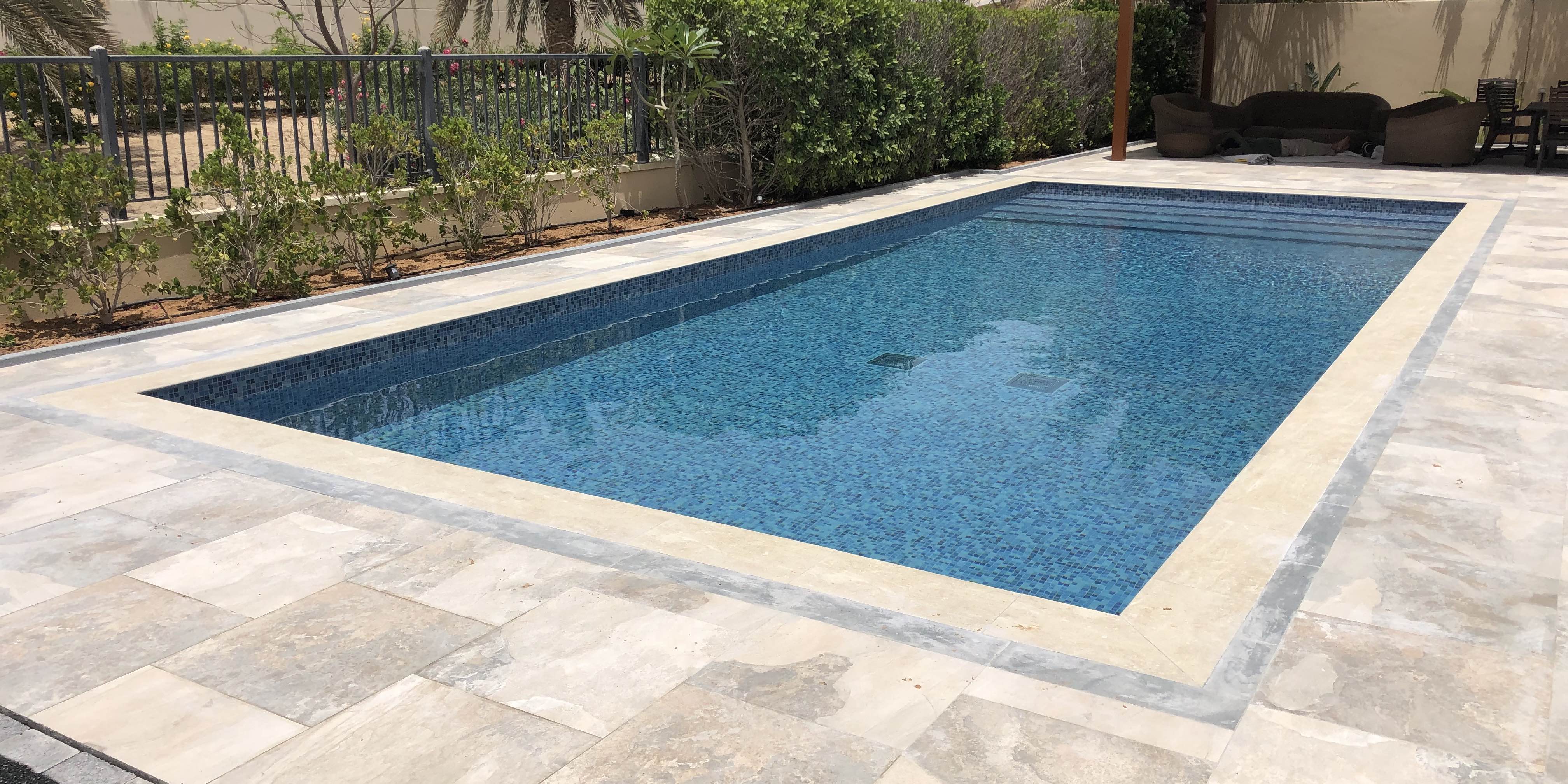

| Pool General Characteristics: | |
| Pool Type | In-Ground |

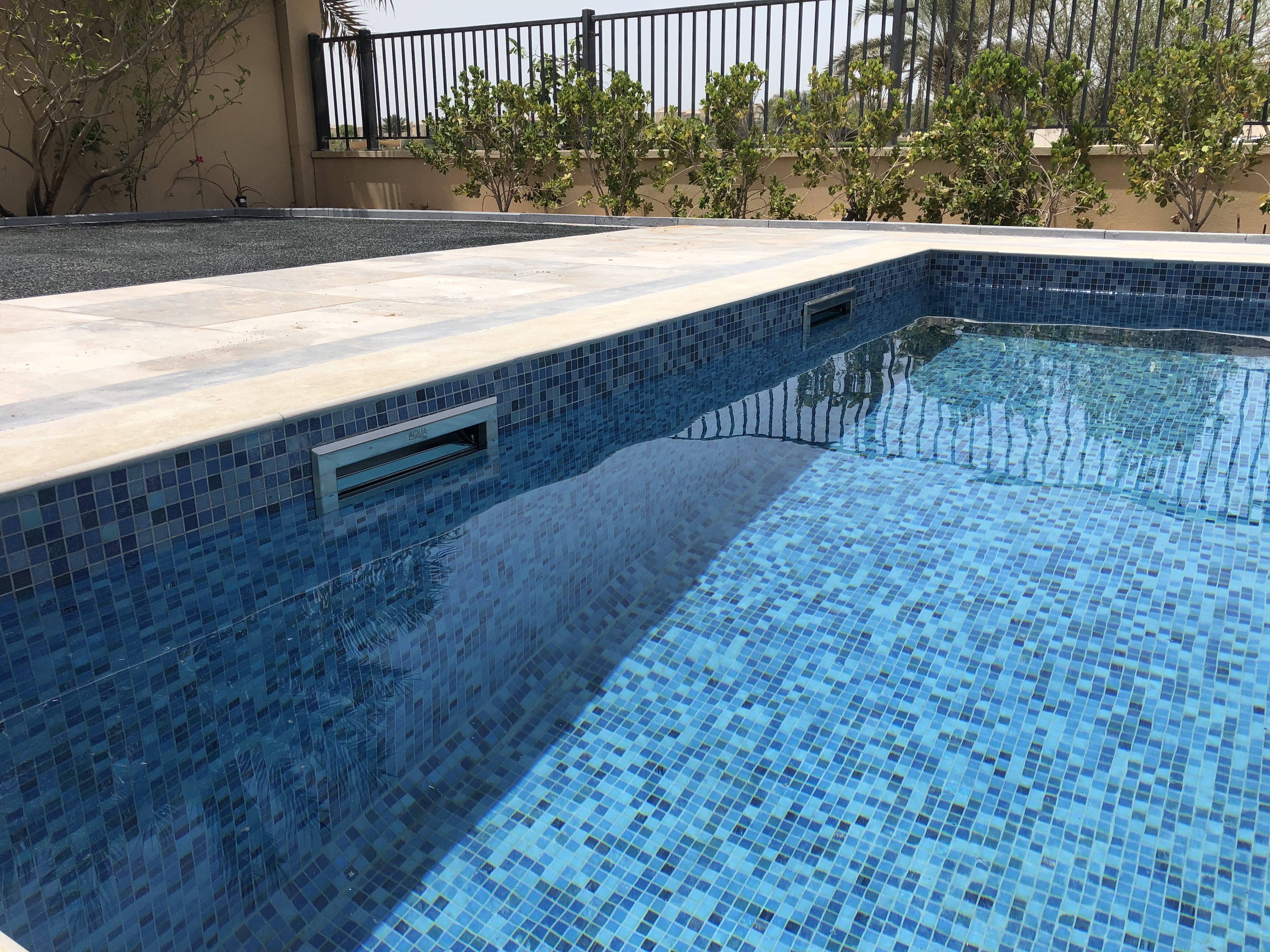

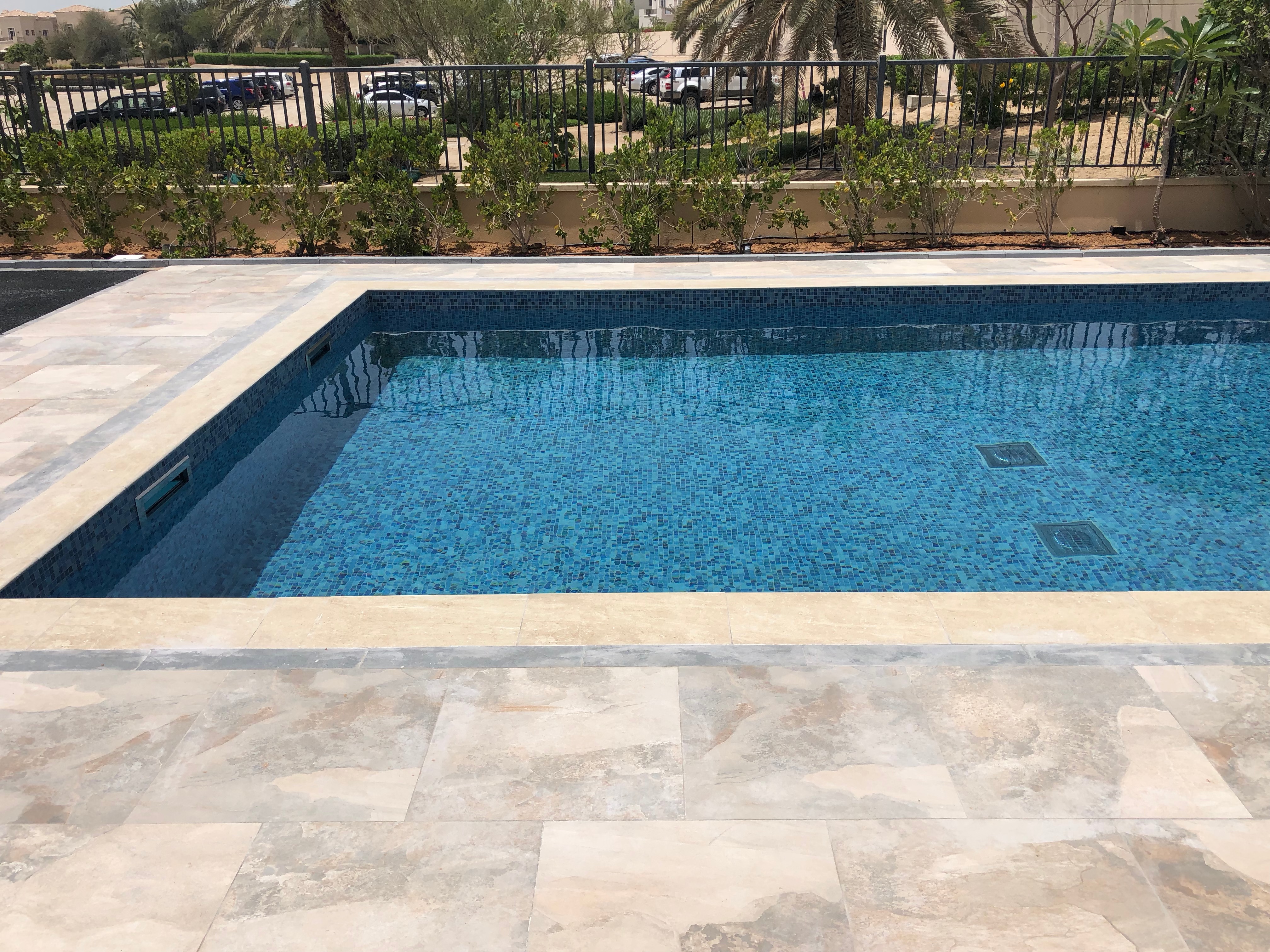

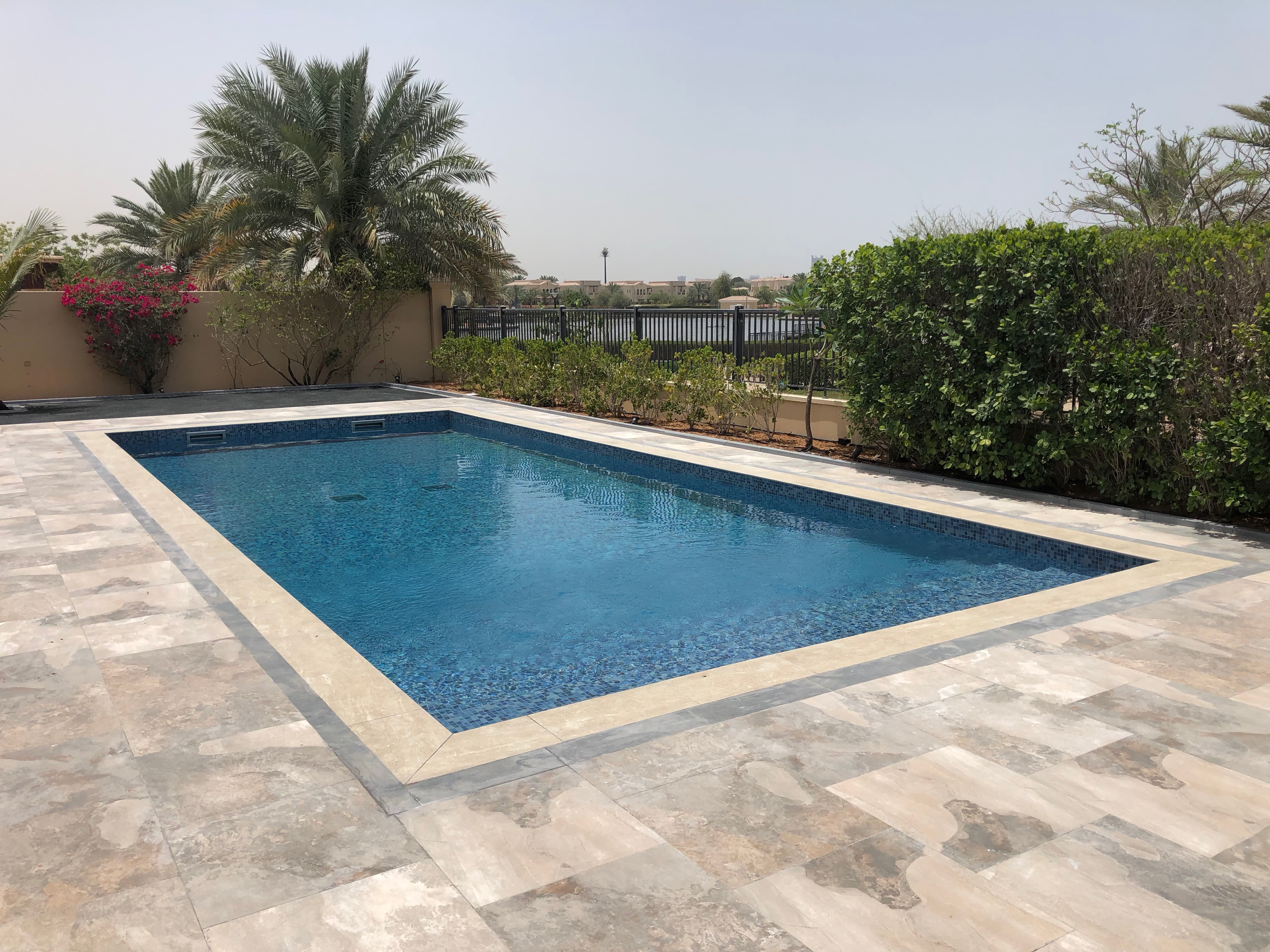

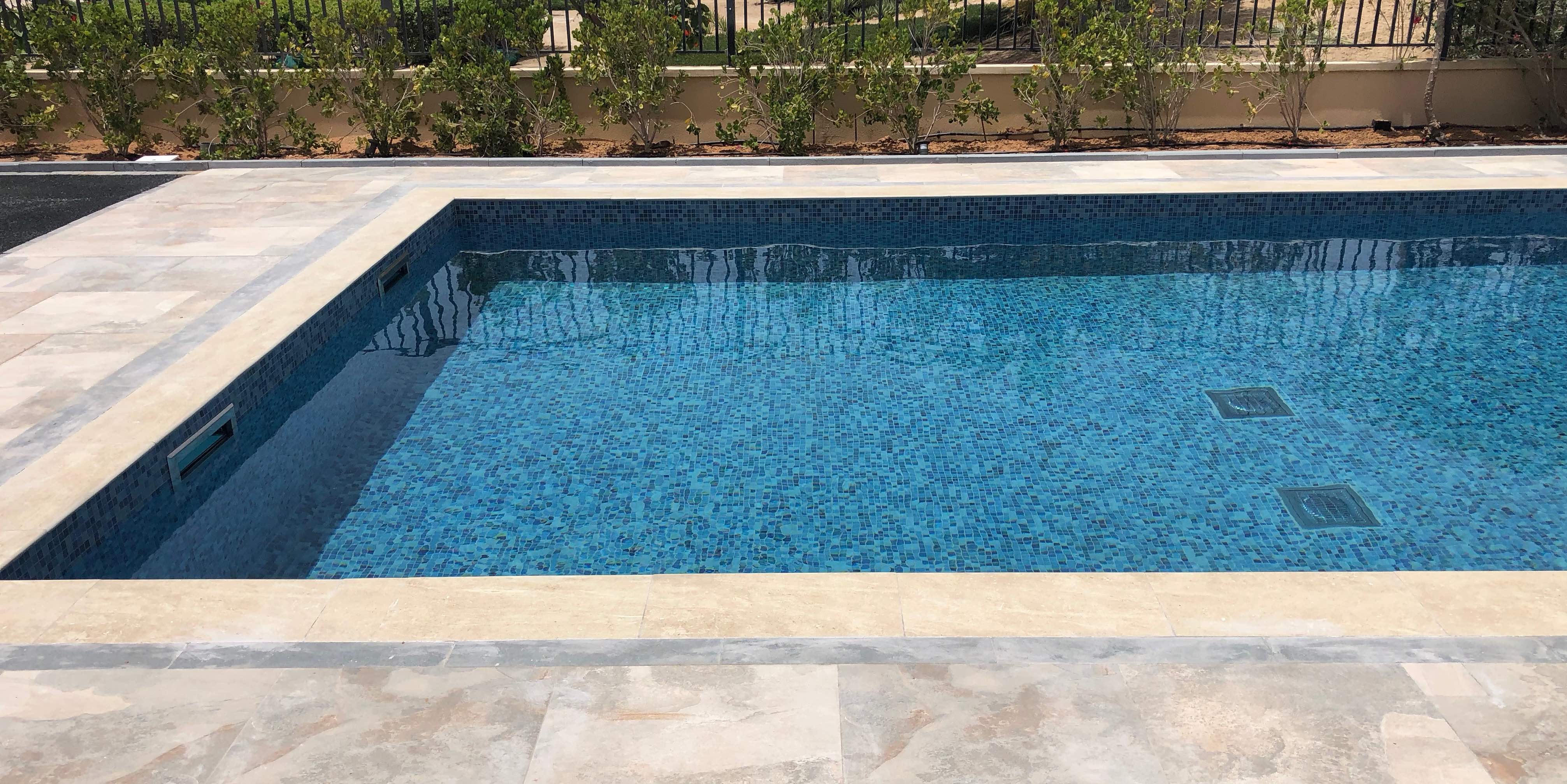

| Pool Concept | Skimmer Pool |
| Pool Location | Outdoor |
| Pool Dimensions (L x W x Dmax) | 11 x 4.5 x 1.3 (m) |
| Pool Surface Area | 41 m2 |
| Pool Water Volume | 63 m3 |
| Pump Room Type | Above Ground |
| Pool Finishing: | |

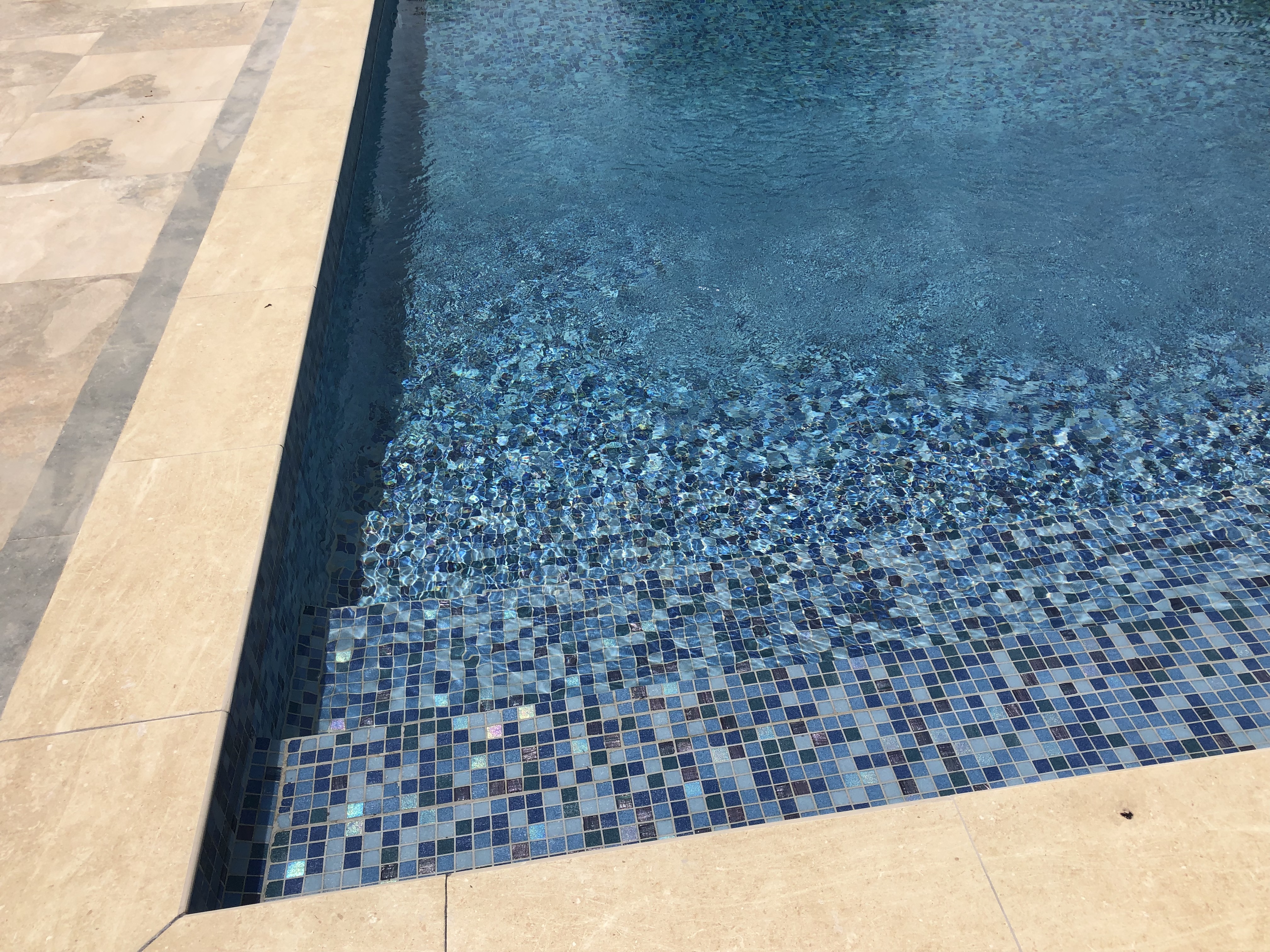

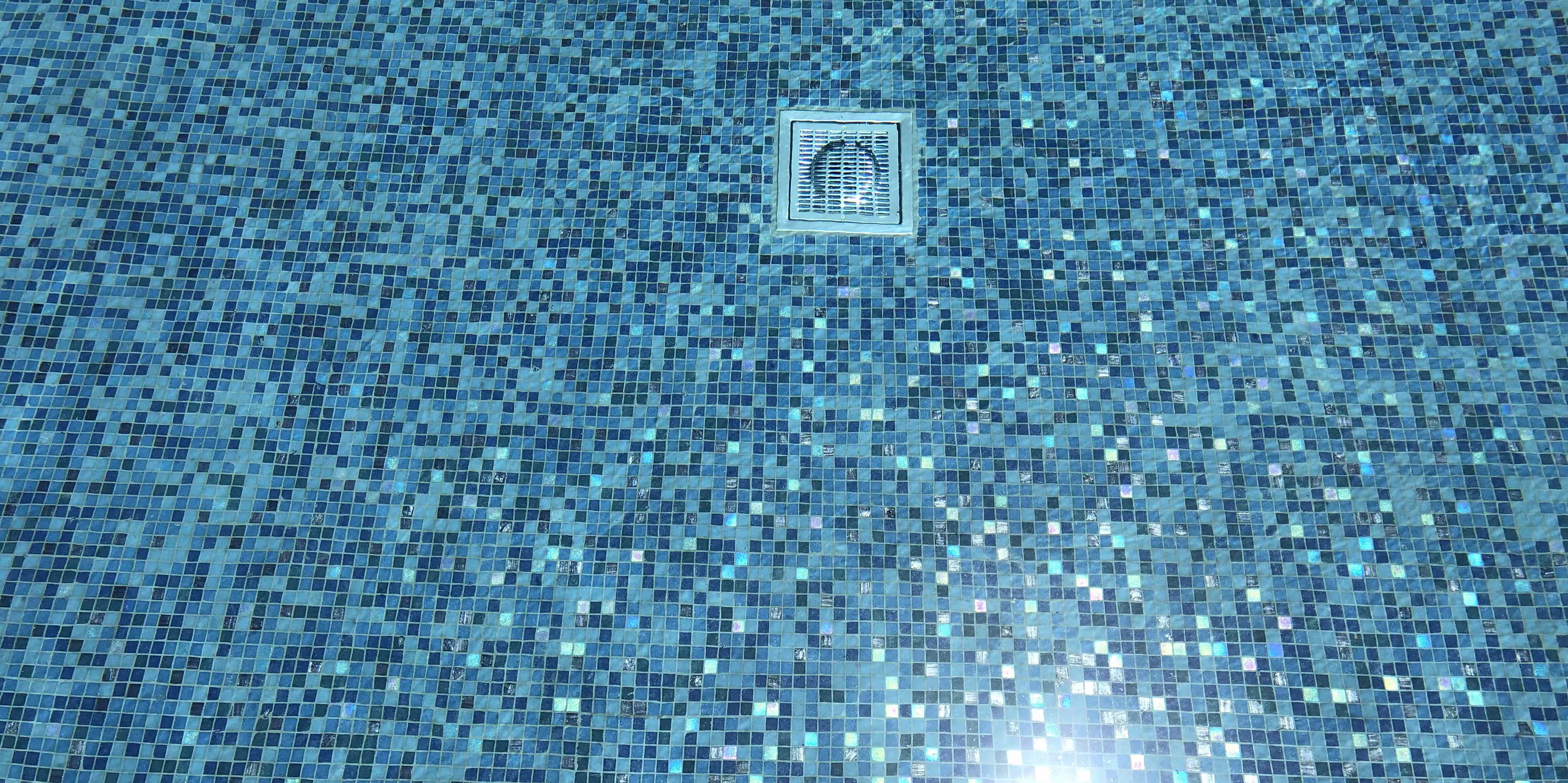

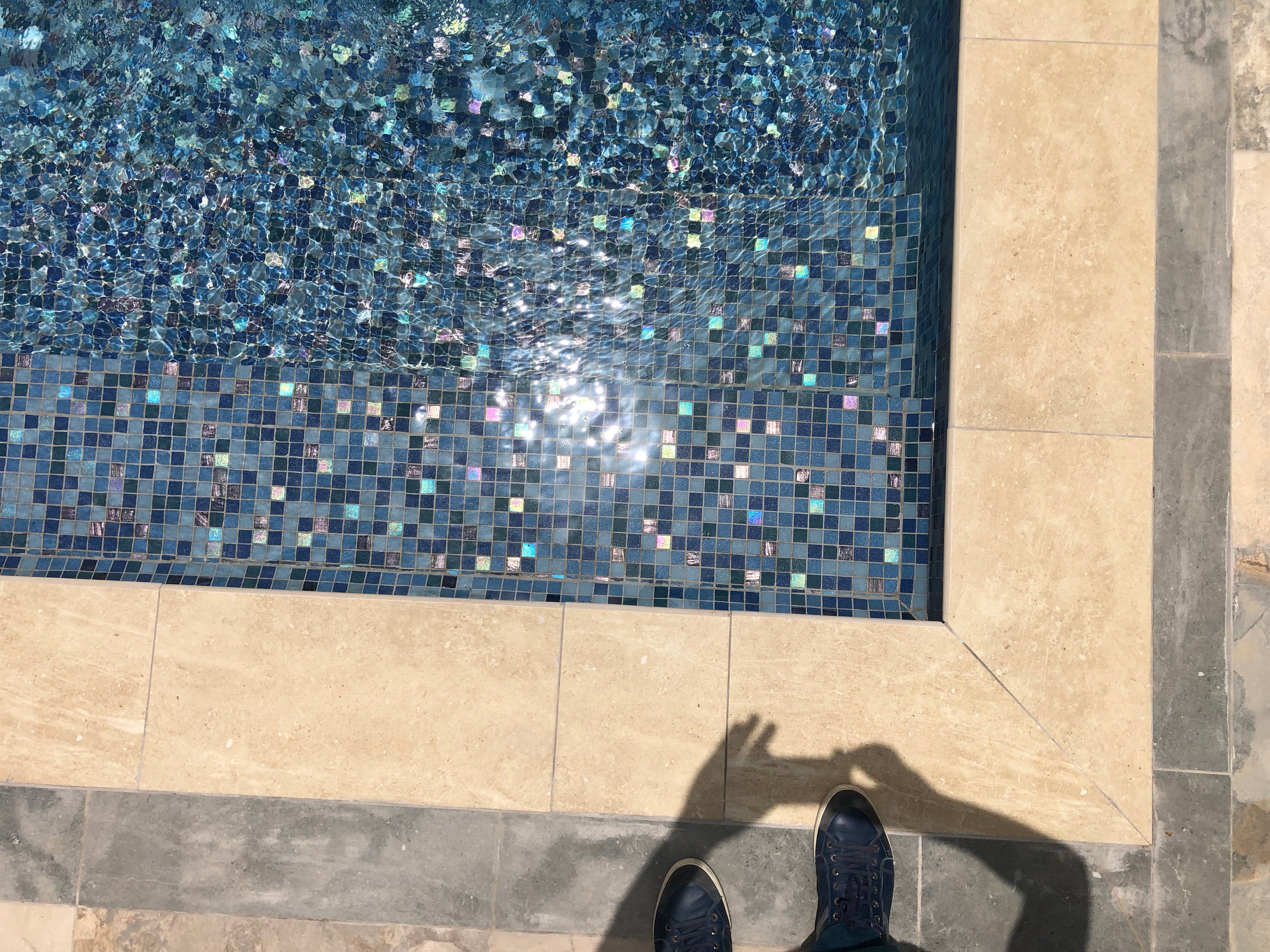

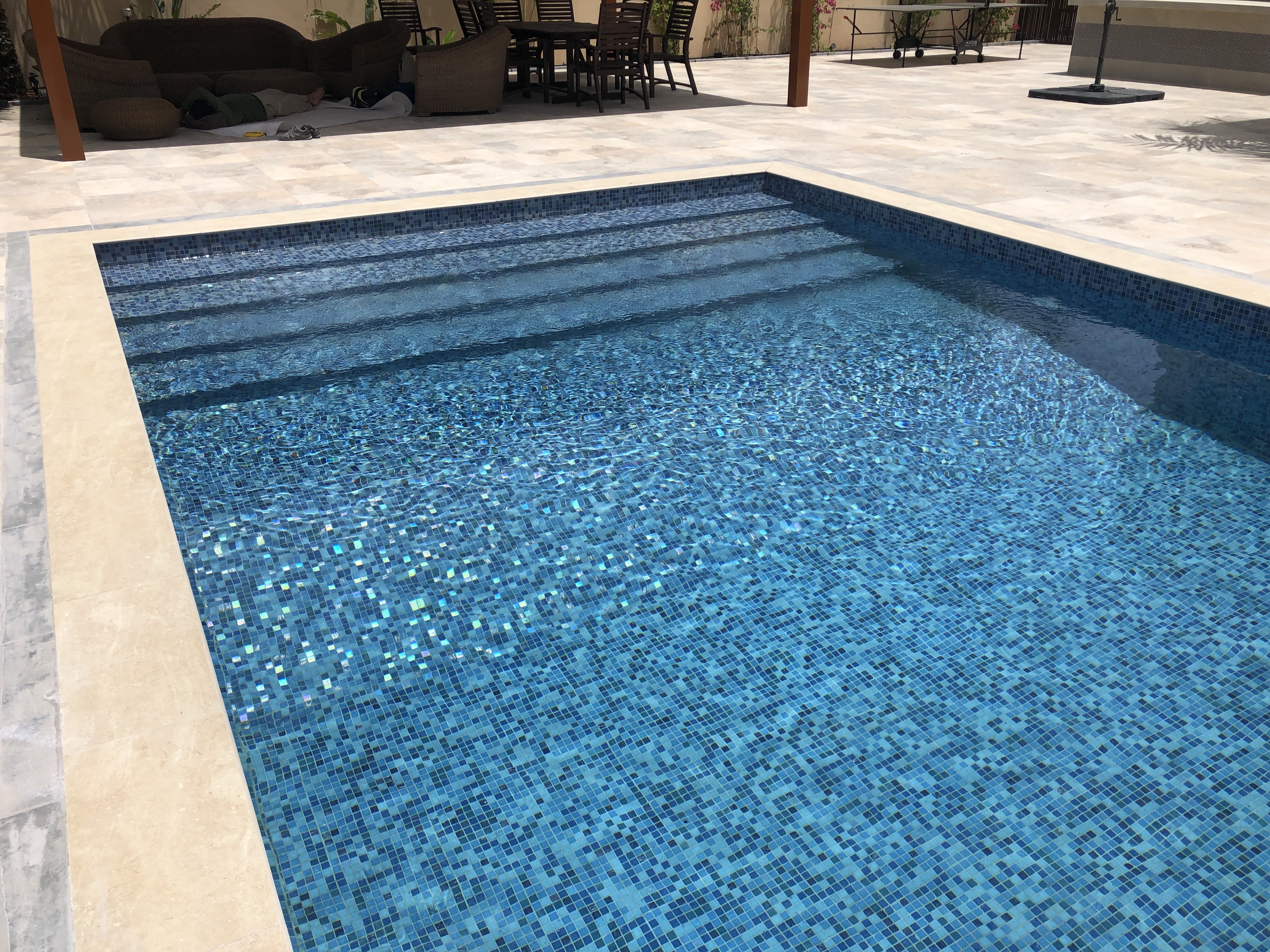

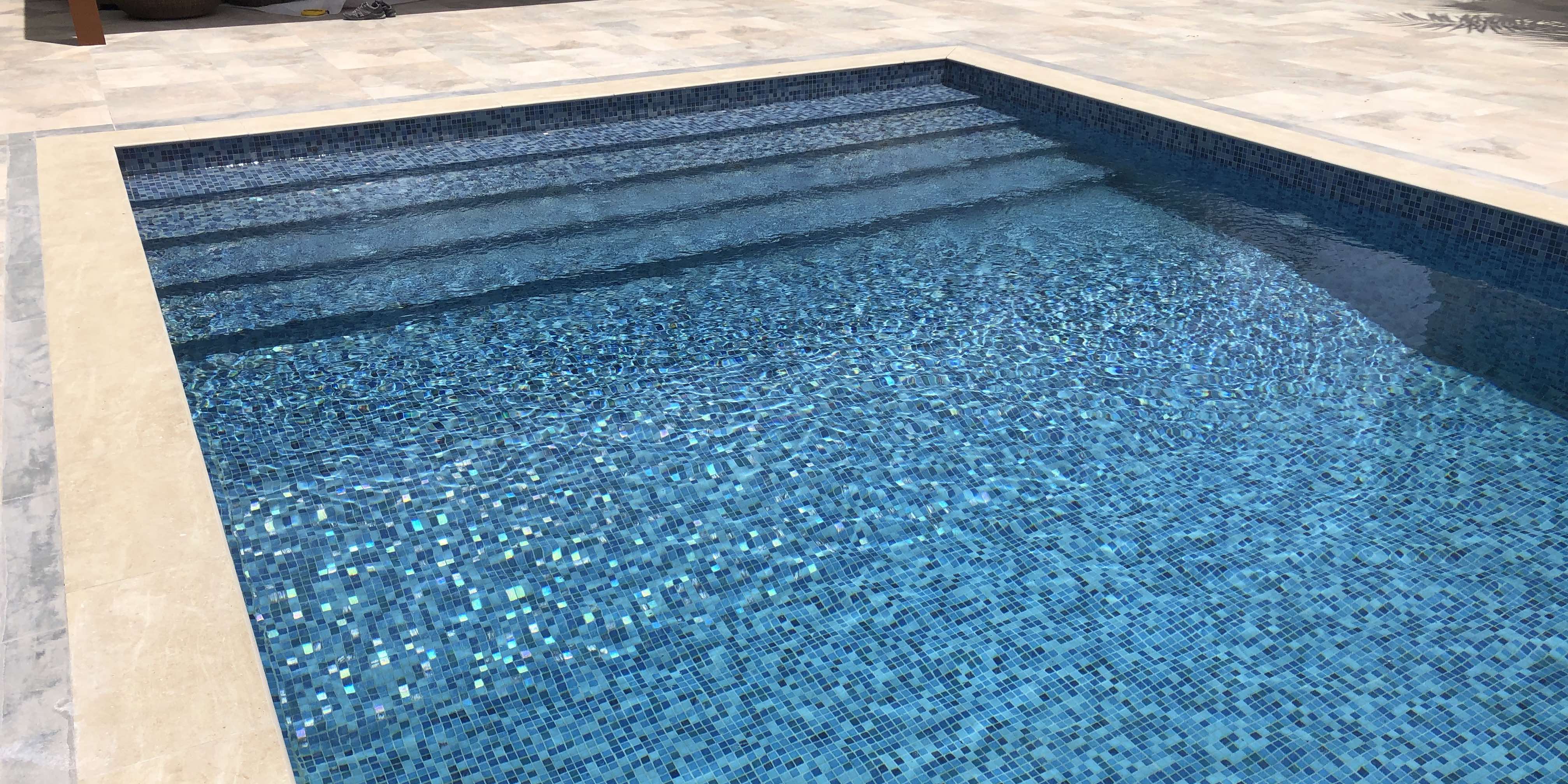

| Finish Type | Glass Mosaic Tiles (20 mm x 20 mm) |
| Coping Type | Porcelain |
| Pool Lights & Fittings: | |
| Lighting Type | LED Cool |
| Fittings Type | Stainless Steel 316L |

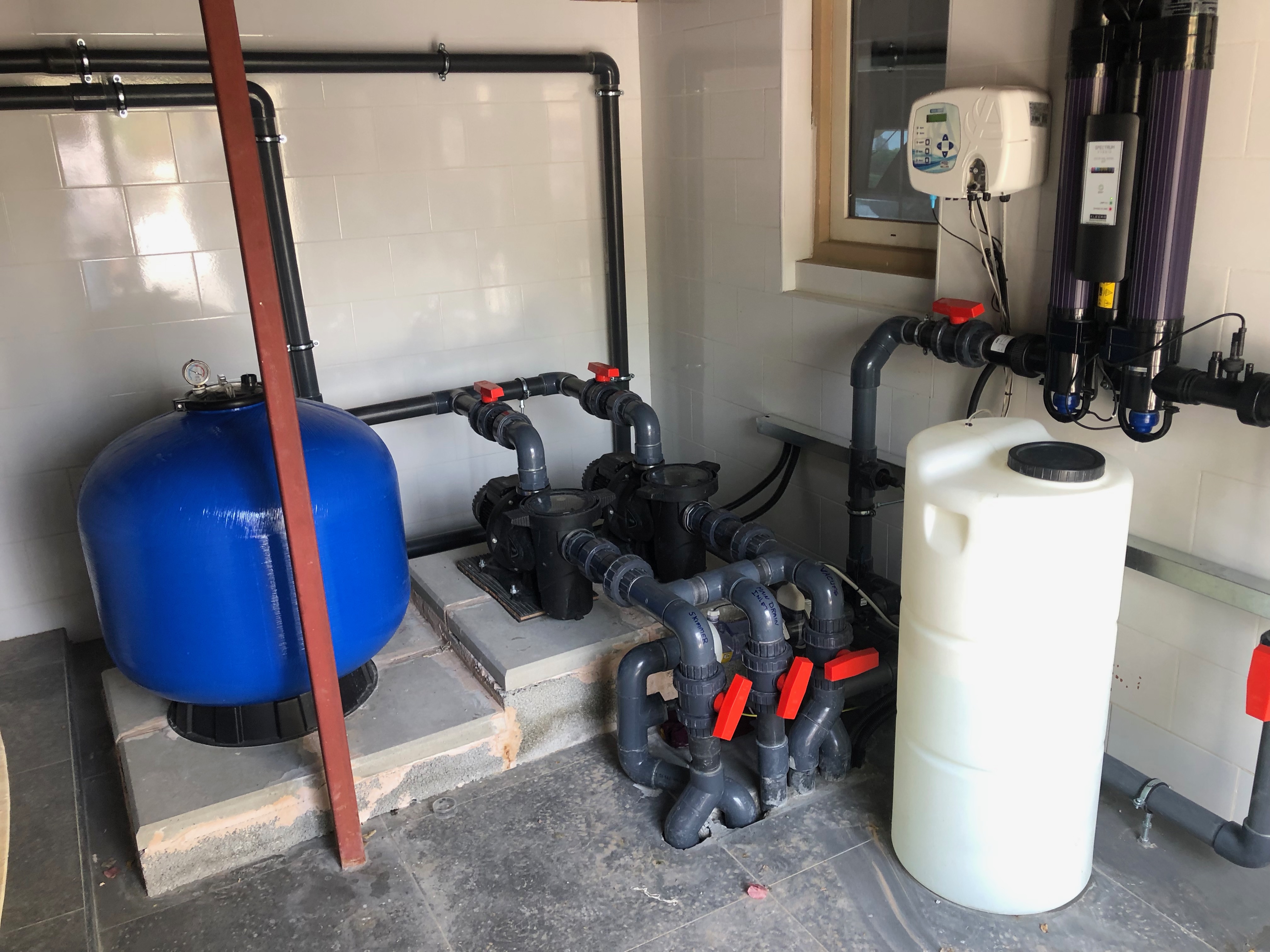

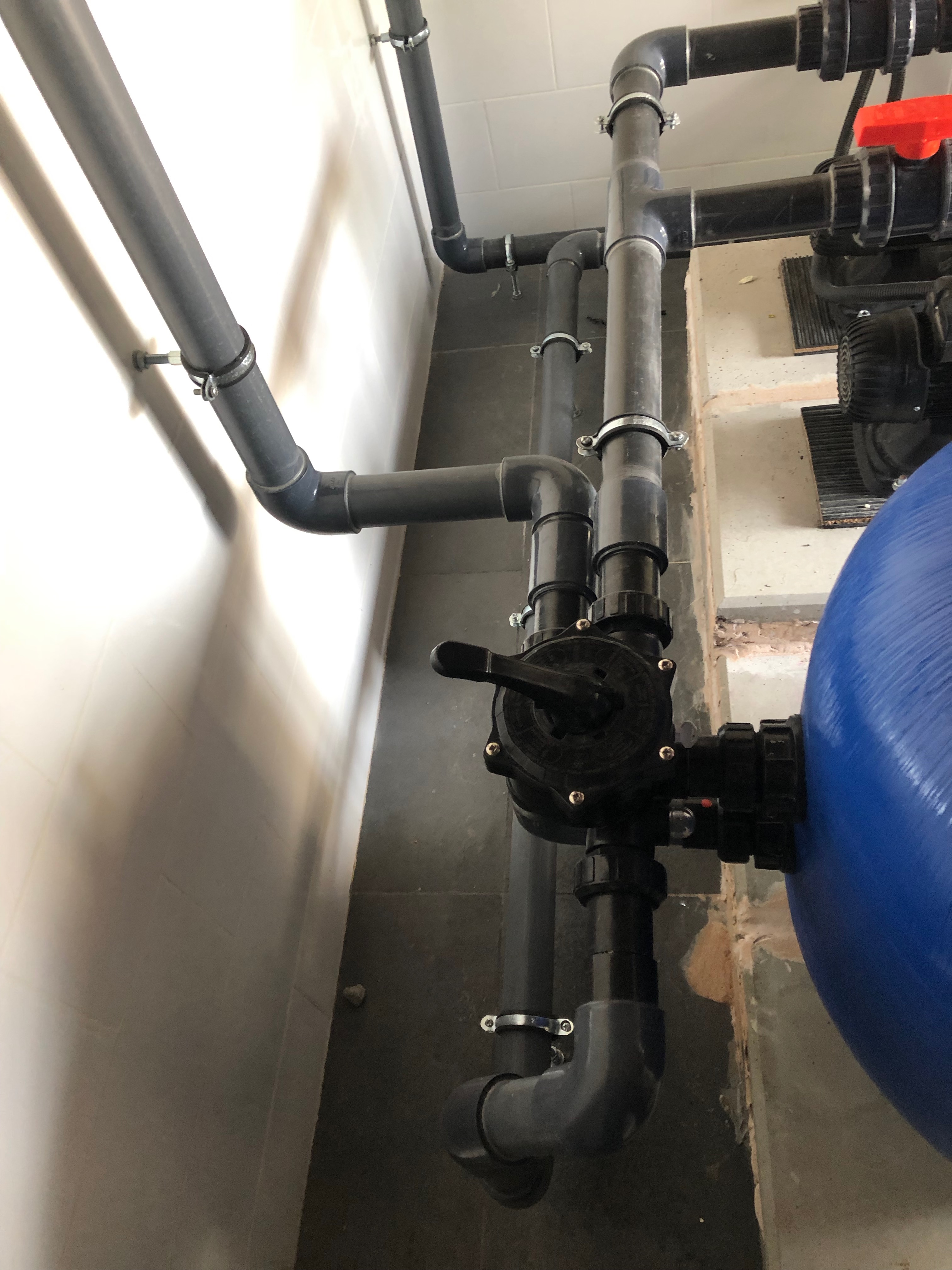

| Pool Recirculation: | |
| Filter Size | 700 mm |
| Number of Filters | 1 |
| Filter Media | Activated Filter Media (AFM) |
| Automatic Back Wash System | No |

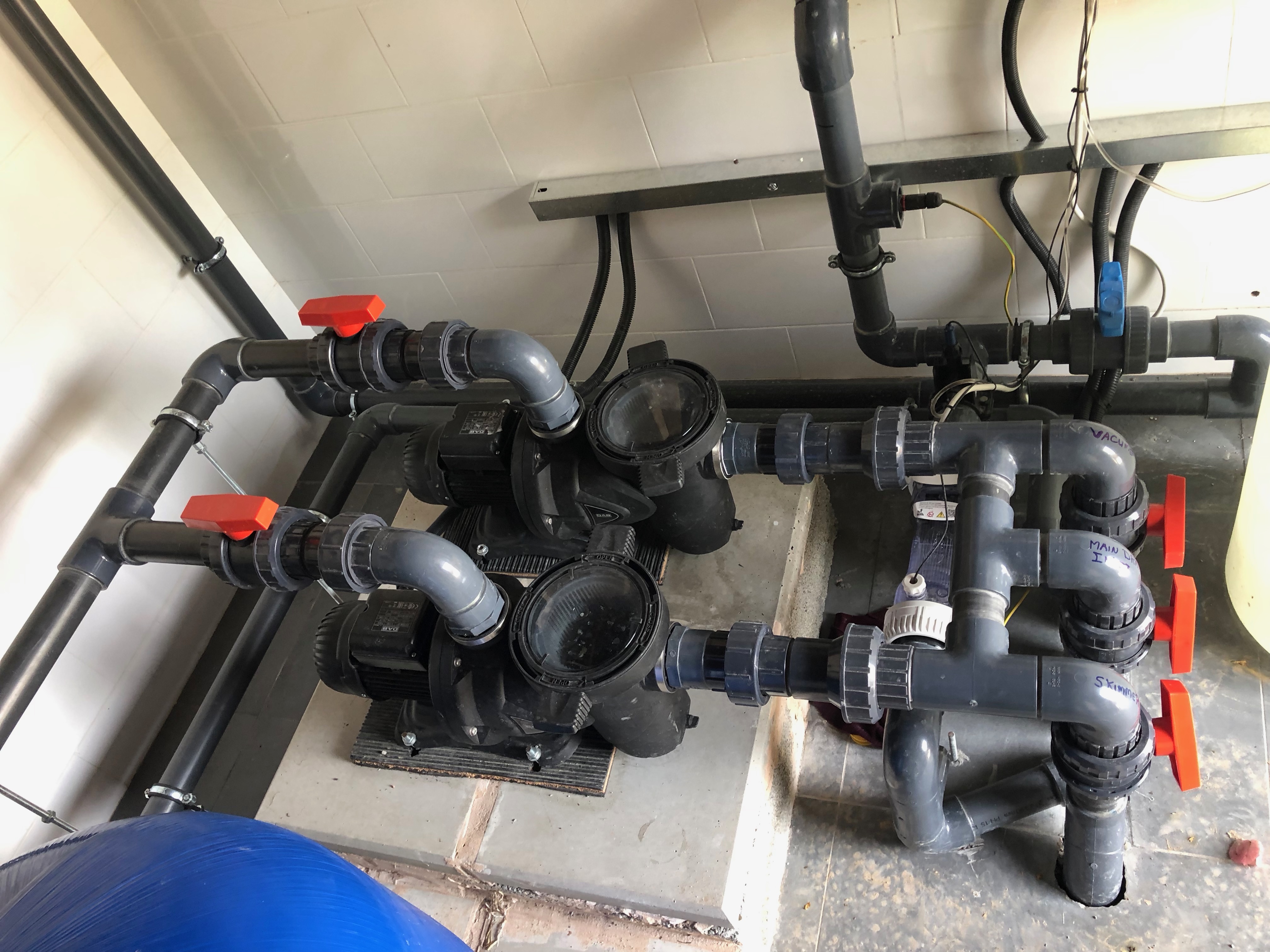

| Pump Size | 1.0 HP |
| Number of Operating Pumps | 1 |
| Number of Standby Pumps | 1 |
| Pool Water Treatment: | |
| Type | Salt Chlorination + pH |
| Automatic Dosing System | Yes |
| UV Disinfection | Yes |
| Pool Automation & Temperature Control: | |
| Smart App Control | No |
| Heat Cooling Pump | Yes |
